UML – ROSPlann Knowledge base – formal ROS description

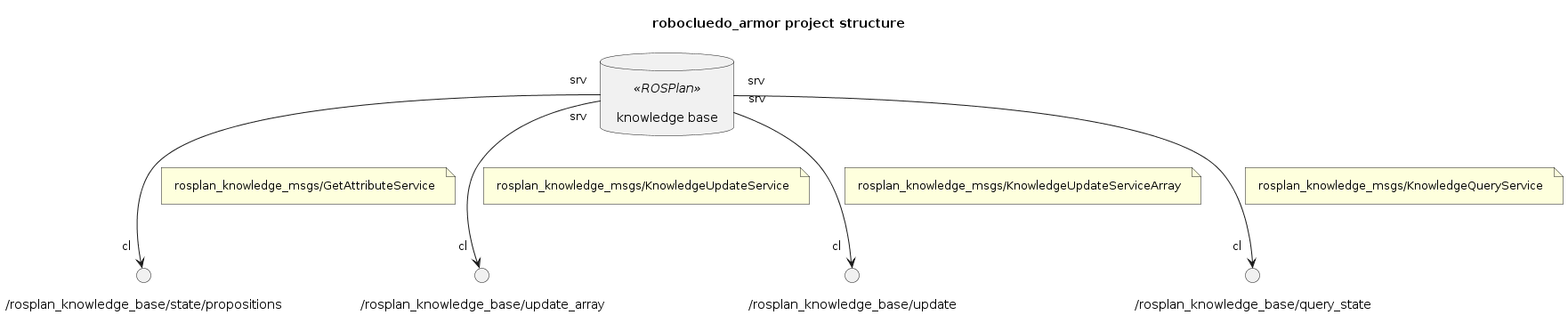

schema – knowledge base

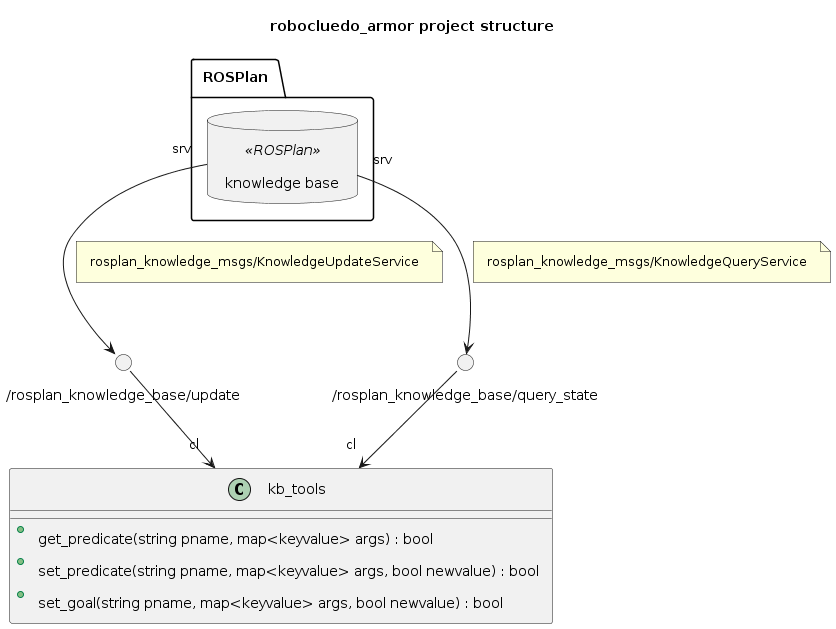

schema – CLASS kb_tools

the long list of HOW TOs …

HOW TO read a predicate

libraries to import:

#include "diagnostic_msgs/KeyValue.h"
#include "rosplan_knowledge_msgs/KnowledgeItem.h"
#include "rosplan_knowledge_msgs/KnowledgeQueryService.h"

// kb knowledge type
#define KB_KTYPE_FLUENT 2
#define KB_KTYPE_PREDICATE 1

the client to open:

#define SERVICE_QUERY "/rosplan_knowledge_base/query_state"
ros::ServiceClient cl_query = nh.serviceClient<rosplan_knowledge_msgs::KnowledgeQueryService>( SERVICE_QUERY );

a more detailed way to open the service:

#define SERVICE_QUERY "/rosplan_knowledge_base/query_state"

// === Predicates Query service === //
TLOG( "Opening client " << LOGSQUARE( SERVICE_QUERY ) << "..." );
ros::ServiceClient cl_query = nh.serviceClient<rosplan_knowledge_msgs::KnowledgeQueryService>( SERVICE_QUERY );
if( !this->cl_query.waitForExistence( ros::Duration( TIMEOUT_QUERY ) ) )
{
	TERR( "unable to contact the server - timeout expired (" << TIMEOUT_QUERY << "s) " );
	// return;
}
TLOG( "Opening client " << LOGSQUARE( SERVICE_QUERY ) << "... OK" );

message rosplan_knowledge_msgs/KnowledgeQueryService

rosplan_knowledge_msgs/KnowledgeItem[] knowledge
---
bool all_true
bool[] results
rosplan_knowledge_msgs/KnowledgeItem[] false_knowledge

message rosplan_knowledge_msgs/KnowledgeItem (needed to perform the request)

# A knowledge item used to represent a piece of the state in ROSPlan

uint8 INSTANCE = 0
uint8 FACT = 1
uint8 FUNCTION = 2
uint8 EXPRESSION = 3
uint8 INEQUALITY = 4

uint8 knowledge_type

# time at which this knowledge becomes true
time initial_time

# knowledge is explicitly false
bool is_negative

#---------
# INSTANCE
#---------

# instance knowledge_type
string instance_type
string instance_name

#----------------------
# PREDICATE OR FUNCTION
#----------------------

# attribute knowledge_type
string attribute_name
diagnostic_msgs/KeyValue[] values

#---------
# FUNCTION
#---------

# function value
float64 function_value

#-----------
# EXPRESSION
#-----------

string optimization
rosplan_knowledge_msgs/ExprComposite expr

#-----------
# INEQUALITY
#-----------

rosplan_knowledge_msgs/DomainInequality ineq

message diagnostic_msgs/KeyValue :

# what to label this value when viewing
string key
# a value to track over time
string value

how to perform the reading:

reading predicates : if you’re sure that the predicate you’re asking for is unique, use the field response.all_true; or also .response.results[] showing each truth value.

// data for request
std::string pname
std::map<std::string, std::string> params


// === PREPARE THE REQUEST === //

rosplan_knowledge_msgs::KnowledgeQueryService query;
rosplan_knowledge_msgs::KnowledgeItem kbm;

kbm.knowledge_type = KB_KTYPE_PREDICATE; // it corresponds to 1
kbm.attribute_name = pname; // the name of the predicate
for ( auto it=params.begin( ) ; it!=params.end( ) ; ++it )
{
	diagnostic_msgs::KeyValue kv;
	kv.key = it->first;
	kv.value = it->second;
	kbm.values.push_back( kv );
}

query.request.knowledge.push_back( kbm );

// ... the same thing for each predicate you want
//    n predicate in list -> n values inside the result

// === PERFORM THE REQUEST === //

cl_query.call( query );


// === EVALUATE THE RESULT === //

bool res = false;

if( query.response.results.size() == 1 )
{
	// only one predicate compatible

	// method 1
	res = query.response.results[0];
	// method 2
	res = query.response.all_true;
}
else
{
	// many predicates (many results...)
}

how to perform the reading using KB tools:

// just one predicate!
std::string pname
std::map<std::string, std::string> params

kb_tools kbt;

bool res = kbt.get_predicate( pname, params );
if(!kbt->ok())
	ROS_ERR("kb tools get predicate");

HOW TO modify a predicate

libraries:

#include "diagnostic_msgs/KeyValue.h"
#include "rosplan_knowledge_msgs/KnowledgeItem.h"
#include "rosplan_knowledge_msgs/KnowledgeUpdateService.h"

// kb knowledge type
#define KB_KTYPE_FLUENT 2
#define KB_KTYPE_PREDICATE 1

// kb action
#define KB_ADD_KNOWLEDGE 0
#define KB_DEL_KNOWLEDGE 2

the service to interact with:

#define SERVICE_KB_UPDATE "/rosplan_knowledge_base/update"
ros::ServiceClient cl_kb_update = nh.serviceClient<rosplan_knowledge_msgs::KnowledgeUpdateService>( SERVICE_KB_UPDATE );

a more detailed way to open the service:

#define SERVICE_KB_UPDATE "/rosplan_knowledge_base/update"

// === update service === //
TLOG( "Opening client " << LOGSQUARE( SERVICE_KB_UPDATE ) << "..." );
ros::ServiceClient cl_kb_update = nh.serviceClient<rosplan_knowledge_msgs::KnowledgeUpdateService>( SERVICE_KB_UPDATE );
if( !this->cl_kb_update.waitForExistence( ros::Duration( TIMEOUT_KB_UPDATE ) ) )
{
	TERR( "unable to contact the server - timeout expired (" << TIMEOUT_KB_UPDATE << "s) " );

	this->success = false;
	return;
}
TLOG( "Opening client " << LOGSQUARE( SERVICE_KB_UPDATE ) << "... OK" );

service rosplan_knowledge_msgs::KnowledgeUpdateService

uint8 update_type
rosplan_knowledge_msgs/KnowledgeItem knowledge
---
bool success

message rosplan_knowledge_msgs/KnowledgeItem (see above)

message diagnostic_msgs/KeyValue (see above)

how to perform the update:

std::string pname
std::map<std::string, std::string> params
bool val = false; // the new val for the predicate


// === PREPARE THE REQUEST === //

rosplan_knowledge_msgs::KnowledgeUpdateService kbm;

kbm.request.update_type = ( val ? KB_ADD_KNOWLEDGE : KB_DEL_KNOWLEDGE );
kbm.request.knowledge.knowledge_type = KB_KTYPE_PREDICATE;
kbm.request.knowledge.attribute_name = pname;

for ( auto it=params.begin( ) ; it!=params.end( ) ; ++it )
{
	diagnostic_msgs::KeyValue kv;
	kv.key = it->first;
	kv.value = it->second;
	kbm.request.knowledge.values.push_back( kv );
}


// === PERFORM THE REQUEST === //

cl_kb_update.call( kbm );


// === EVALUATE THE RESULT === //

bool success = kbm.response.success;

how to perform the update with kb_tools:

std::string pname
std::map<std::string, std::string> params
bool val = false; // the new val for the predicate

kb_tools kbt;

bool res = kbt.set_predicate( pname, params, val );
if(!kbt->ok())
	ROS_ERR("kb tools set predicate");

dealing with goals

libraries:

#include "diagnostic_msgs/KeyValue.h"
#include "rosplan_knowledge_msgs/KnowledgeItem.h"
#include "rosplan_knowledge_msgs/KnowledgeUpdateService.h"

// kb knowledge type
#define KB_KTYPE_FLUENT 2
#define KB_KTYPE_PREDICATE 1

// kb action
#define KB_ADD_KNOWLEDGE 0
#define KB_DEL_KNOWLEDGE 2
#define KB_ADD_GOAL 1
#define KB_DEL_GOAL 3

message rosplan_knowledge_msgs/KnowledgeUpdate (see above)

in order to make this update, open a client with /rosplan_knowledge_base/update of type rosplan_knowledge_msgs::KnowledgeUpdate

#define SERVICE_KB_UPDATE "/rosplan_knowledge_base/update"
ros::ServiceClient cl_kb_update = nh.serviceClient<rosplan_knowledge_msgs::KnowledgeUpdateService>( SERVICE_KB_UPDATE );

here’s the code for the action:

std::string pname
std::map<std::string, std::string> params
bool val = false; // the new val for the predicate


// === PREPARE THE REQUEST === //

rosplan_knowledge_msgs::KnowledgeUpdateService kbm;

kbm.request.update_type = ( value ? KB_ADD_GOAL : KB_DEL_GOAL );
kbm.request.knowledge.knowledge_type = KB_KTYPE_PREDICATE;
kbm.request.knowledge.attribute_name = pname;

for ( auto it=params.begin( ) ; it!=params.end( ) ; ++it )
{
	diagnostic_msgs::KeyValue kv;
	kv.key = it->first;
	kv.value = it->second;
	kbm.request.knowledge.values.push_back( kv );
}


// === PERFORM THE REQUEST === //

cl_kb_update.call( kbm );


// === EVALUATE THE RESULT === //

bool success = kbm.response.success;

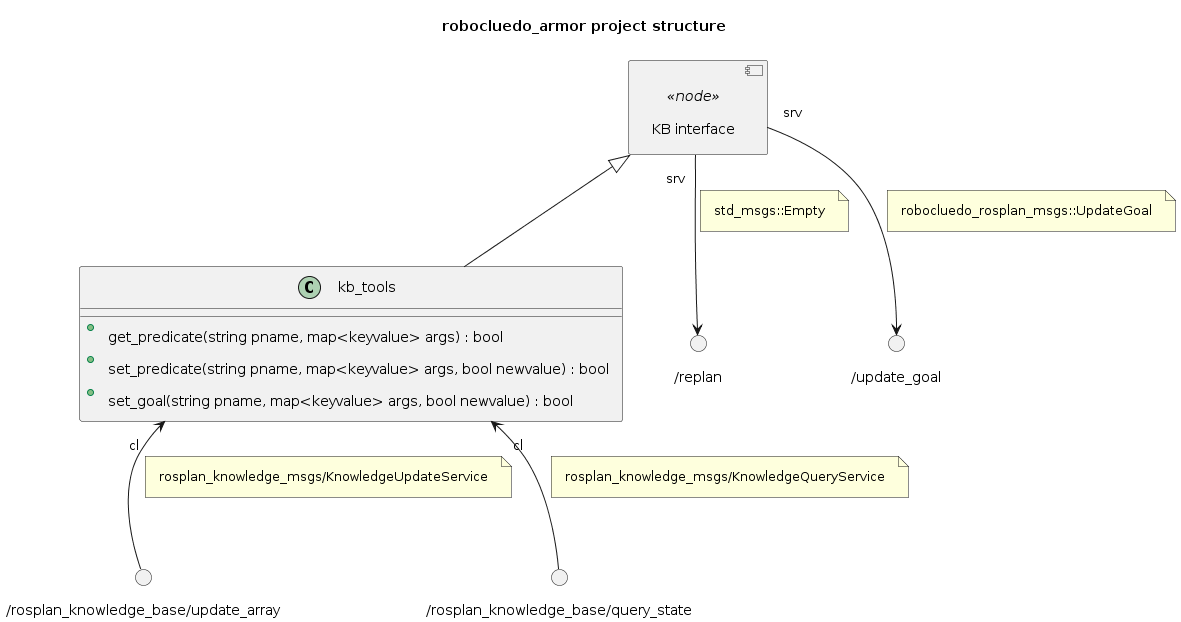

schema – NODE kb_interface
